Terahertz Free Beam Sensor 800 nm, 100 um large aperture (T-Era-100A-800-Air)

Name: Terahertz Free Beam Sensor 800 nm, 100 um large aperture (T-Era-100A-800-Air)
Brand: TeTechs
SKU: T-Era-100A-800-A
Price: 2689 USD
Availability: InStock

Functions as a Transmitter Only

Availability: In Stock

In-Stock Notification Sign Up

To be notified when this item is back In Stock, please enter your Email Address below:

Regular: $2,999.00

Price: $2,689.00

You Save: $310.00 (10% Off)

Be The First To Write A Review

Description
Applications
FAQs
Manuals
Bulk

The T-Era-100A-800-Air terahertz photoconductive antenna (THz-PCA) is used to generate wideband THz pulses in terahertz time-domain systems. The T-Era-100A-800-Air THz-PCA is made on high resistive ultra-fast epitaxially grown low-temperature GaAs (LT-GaAs) substrates packaged in TeTechS' patent pending THz chip enclosure module. The enclosure module houses the THz-PCA with a collimating high-resistive silicon lens attach to the back side of the THz-PCA chip.

The device is packaged in a modular format so that it is easy to change the THz-PCA chip inside the enclosure at a fraction of cost. The device is shipped with the silicon lens aligned and packaged on the back side of the THz-PCA chip. The silicon lens can be re-aligned after changing the THz-PCA chip using our silicon lens setting fixtures.

An input bias voltage can be applied to the chip through an isolated MMCX connector. The standard 01' treaded body makes it convenient to attach the module to other standard optical components or mount it on an optical bench.

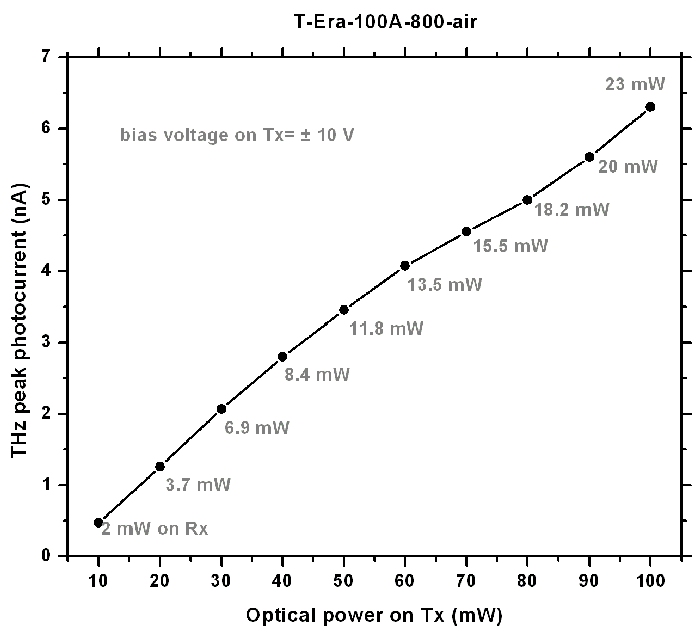

When excited by optical pulses with 40 mW average optical power, the T-Era-100A-800-Air THz-PCA generates 14 nA peak THz photocurrent with more than 60dB terahertz power spectrum dynamic range.

Key Features:

Rugged Packaging.
Wideband THz Signal.
Integrated Silicon Lens.
Standard 01' Treaded Body
Easy to Mount.
Ready to Use.

Product Details

Product Specification:

Optical Excitation Wavelength:	750 nm-850 nm
Average Optical Power:	10 mW-100 mW
Bias Voltage:	5 V - 60 V
Spectrum Bandwidth:	>4 THz
Power Spectrum Dynamic Range:	>60 dB
Size (O.D.):	1"

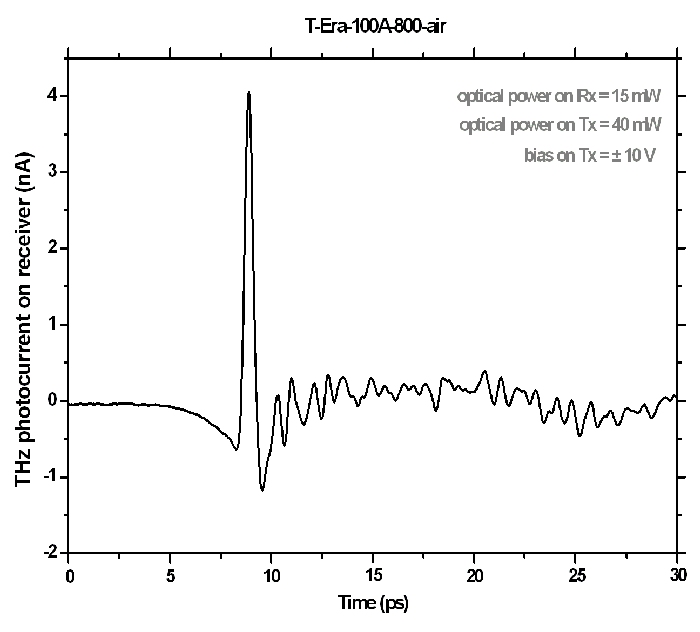

A typical THz pulse and its corresponding power spectrum generated by a T-Era-100A-800-Air transmitter module and detected by a T-Era-20D40P-800-air receiver module in a terahertz time-domain system.

Product Specs

UPC:

111077780006

MPN:

T-Era-100A-800-Air

Category:

Wide Frequency Bandwidth Sensors

Terahertz Spectroscopy.
Terahertz Imaging.
Material characterization.
Material sensing.
Non-destructive test.
Terahertz spectroscopy.
Hidden object detection.
Product inspection.
Manufacturing quality control.
Material identification, such as: plastics; pulp and paper; gels organic powders; adhesives.
Thickness measurement and uniformity analysis.
Coating and thin film analysis.
Additives analysis.
Electronic chip fault analysis.
THz Time-domain Systems.

A typical THz pulse and its corresponding power spectrum generated by a T-Era-100A-800-Air transmitter module and detected by a T-Era-20D40P-800-air receiver module in a terahertz time-domain system. Excited by 100fs optical pulses with 40mW average power the T-Era-100A-800-Air THz-PCAs generate 14nA peak THz photocurrent with more than 60dB THz power spectrum dynamic range.

Q: What is Terahertz?

A: The 'terahertz gap' - where until recently bright sources of light and sensitive means of detection did not exist - encompasses frequencies invisible to the naked eye in the electromagnetic spectrum, lying between microwave and infrared in the range from 0.1 THz to 10 THz. Terahertz radiation, also known as T-rays, has wavelength of 3.3-333 cm-1.

Terahertz technology has entered into an era with ever-growing applications in material spectroscopy and sensing, monitoring and spectroscopy in pharmaceutical industry and science, food industry, security, aerospace, oil industry, medical imaging, biology and medicine, and high-data-rate communications. Recent advances in semiconductor, laser, and optical technologies have made terahertz spectrum accessible to many technologists and scientists in diverse areas, ranging from biology and medicine to chemical, pharmaceutical, and environmental sciences to revisit their problems under the light of terahertz waves, thanks to the substantial growth of adjacent telecom, semiconductor, and laser markets in the recent years.

Q: What is a Terahertz Photoconductive Antenna (THz-PCA)?

A: Terahertz photoconductive antennas (THz-PCAs) are among the most promising devices that are used to harness the unique properties of terahertz waves for variety of applications, such as security, biology and medicine, medical imaging, material spectroscopy and sensing, and monitoring and spectroscopy in pharmaceutical industry. Since their demonstration as practical THz sources and detectors, THz-PCAs have been the subject of a vast amount of scientific and industrial reports investigating their applications as terahertz wave transmitters and receivers. Using THz-PCAs for generation and detection of THz signals, one can achieve relatively high signal-to-noise ratio and perform fast scan for imaging and spectroscopy applications. The possibility of fabricating THz-PCAs on photoconductive materials with the band gap energy equal to the energy of the photons at the telecommunication wavelengths and using them in fiber coupled schemes make THz-PCAs attractive for several real-world applications.

Q: What is the difference between Air-coupled and Fiber-coupled Terahertz Photoconductive Antenna Sensors?

A: The air-coupled terahertz transmitter and receiver sensors are excited by a free-space optical laser beam, while the fiber-coupled THz transmitter and receiver sensors are excited by fiber-coupled optical laser beam.

Q: What is the difference between Wide Frequency Bandwidth sensors and High Frequency Resolution sensors?

A: The wide frequency bandwidth sensors are excited by femtosecond optical pulse to generate and detect terahertz pulse with bandwidth of up to 4 THz. The high frequency resolution sensors are excited by pair of continuous wave optical lasers with frequency difference in the THz frequency range to generate and detect continuous wave (CW) terahertz signal. The generated THz CW signal frequency can be precisely tuned by adjusting the wavelength difference of two single-mode optical lasers.

Q: What kind of Lasers can we use to drive the Terahertz sensors?

A: For the wide frequency bandwidth terahertz sensors, the femtosecond ultrafast lasers are used to excite the sensors. The laser generates optical pulses with pulse width less than 100 fs and enough output power to drive a pair of transmitter and receiver sensor. Please see the Technical Information about required power for each T-Era sensor. For the High frequency resolution sensors, two single-mode CW optical lasers with frequency difference in the THz range are employed to drive the Terahertz sensors. The line width of the lasers should be in MHz range.

Q: What is the Ultra high vacuum compatibility of this product?

A: The T-Era sensors have been used by customers in ultra high vacuum chamber.

Q: How much is the diameter of the terahertz collimated beam? How much is the focal distance?

A: It depends on the Terahertz optics but one can use off-axis parabolic mirrors or a collimating THz lens to collimate the diverging beam from the transmitter emanating from the silicon hyper-hemispherical lens. The beam coming from the transmitter is diverging with an angle of 17 degrees. For the off-axis parabolic mirrors that are used in a setup with focal length of 101.6 mm, the collimated THz beam is 50.8 mm. Please see the Applications tab for each T-Era sensor for more details.

Q: What is the Polarization of the THz beam?

A: The THz beam is linearly polarized.

Q: Is there a possibility to align the silicon lens on the back side of the devices?

A: Yes, the devices are shipped with the silicon lens already aligned and packaged on the back side of the devices. The silicon lens can be re-aligned after changing the chips using our silicon lens setting fixtures.

Q: Is it easy to change the sensor chip dye?

A: Yes, the devices are packaged in a modular format so that it is easy to change the chips inside the enclosures. The terahertz chip dye is mounted on a PCB board, which is connected to the SMA connectors with wires. We can change the chip dyes and re-align the silicon lens for the best performance at a fraction of cost. To change the chip dyes one can purchase one of our silicon lens setting fixtures to align the silicon lens.
